Multitech Engineers
Nitrogen Generator,

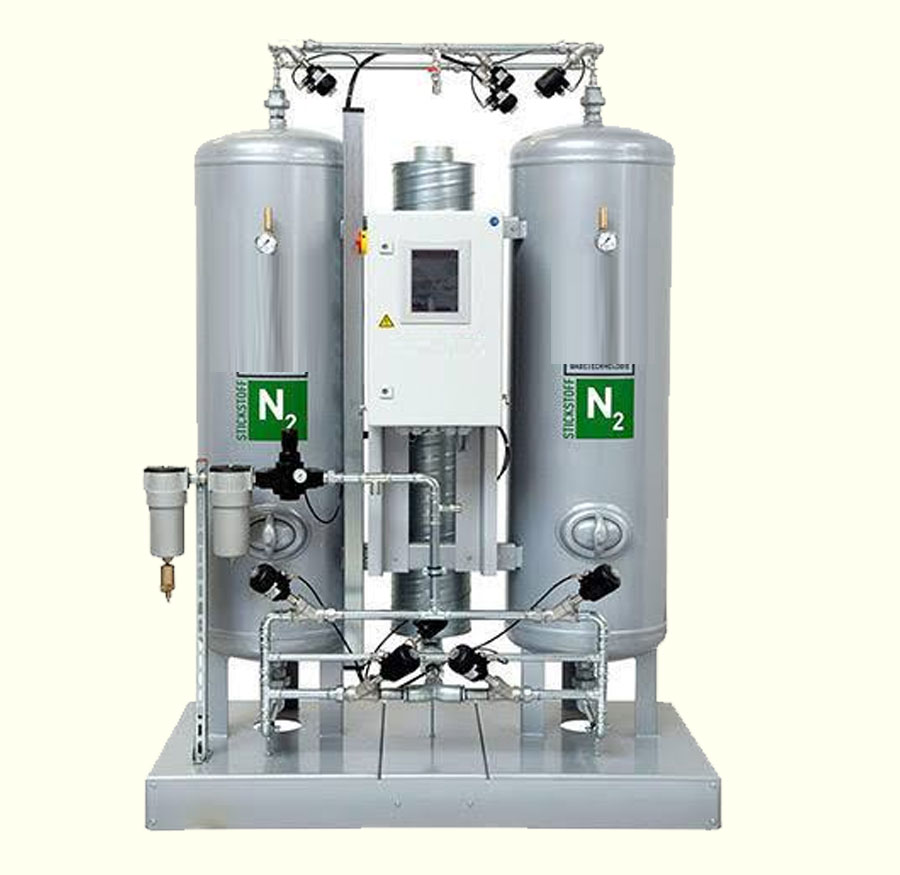

Continuing to be the leader in innovative system designs, MULTITECH Offer Compact System. This new design was developed to bridge the gap between the Twin Tower designs and the expandable Bank Series. Utilizing its years of experience and extensive technology in nitrogen generators, this concept allows for small single or multiple bed to be installed on a common base, for portability and ease of installation. The design allows for lower-flow and higher-purity applications, and requires less space than the conventional Twin Tower. Using the highest efficiency CMS on the market to date, the overall system size has been reduced and will utilize less incoming air than conventional on the market. The air receiver and nitrogen receiver can be installed on same common base, which minimizes installation time, resulting in faster Nitrogen purity, once delivered and turned on.

MULTITECH - Nitrogen Generators separate nitrogen from compressed air utilizing Pressure Swing Adsorption technologies.  Compressed air, which consists of approximately 21% oxygen and 78% nitrogen, is passed through a bed of Carbon Molecular Sieve (CMS).  The CMS preferentially adsorbs O 2  and moisture, allowing the N 2  to pass through as a product gas at the specified pressure.  While one of the towers is in the adsorption phase, the other tower is being regenerated, by de- pressurizing and allowing the CMS to release the adsorbed gases to the atmosphere.  The cycle then repeats, allowing for constant flow of a controlled Nitrogen purity and flow.
